Gradall

One Volvo Stage 5 engine on a crawler or rough terrain rubber tire undercarriage. Crawlers run dual range high torque piston motors with three-stage planetary drives and wet disc parking brakes, tracks counter-rotate to pivot on the swing centerline, and travel reaches 3.4 mph. Hoses are stainless braided with fire sleeves, tracks and foam filled or solid tires are fire resistant, and heat shields protect the rubber. Wheeled models use oscillation lock cylinders and box plate construction to work in any direction without outriggers.

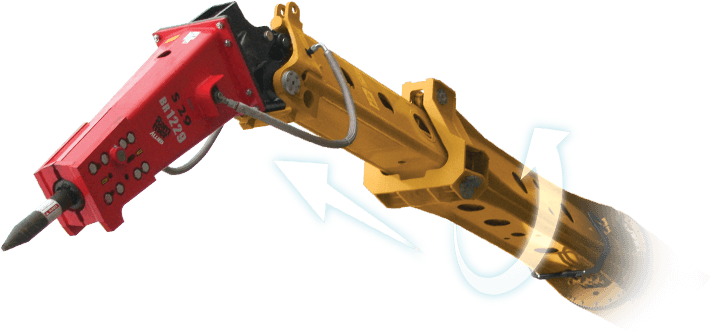

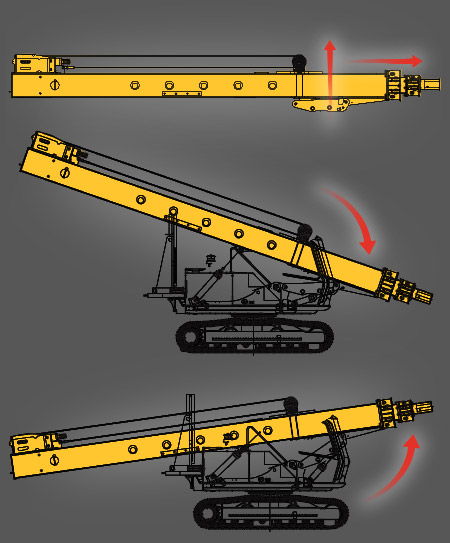

Heavy-duty boom rollers, a rugged boom, and a tilt motor at the rear end give 360 degree continuous rotation for prying at any angle with no loss of tilting power. The low-profile boom telescopes out to 52 feet with consistent force, reaching deep into furnaces while the operator sees the full boom length through the entire dig cycle.

Quiet, roomy cab with a comfortable seating module and joysticks built into the armrests. An in-cab switch selects the Gradall, Deere, or SAE control pattern. Two electronic foot pedals reposition the carrier across two crawler speed ranges. Air conditioning, high temperature glass, and window guards are standard, with optional rollover protection.

Bosch Rexroth high-pressure hydraulics, electronically controlled with pressure-compensated, load-sensing valves. A combined electrical system runs chassis and excavator functions, and an internal tooth swing bearing keeps movement smooth and stable.

Short tail swing to maneuver in tight quarters, a heavy frame for lateral support, and a heavy boom cradle. Crawlers carry thicker grouser pads for work at the side of the carrier. The triangular telescoping boom holds full power and speed through the working range, with electronic joysticks for precise boom and attachment positioning.

One Volvo Stage 5 engine on a crawler or rough terrain rubber tire undercarriage, with the same fire resistant tracks and tires, heat shields, stainless braided hoses, and counter-rotating tracks as the steel models. A single-point lifting yoke is available. Wheeled models work in any direction without outriggers.

Heavy-duty boom rollers on an exceptionally rugged three-section boom. The boom is cable actuated and non-tilting, level working height is adjustable, and the roller assembly can be removed for maintenance. Internal metal hose and tube clamps keep lines protected, and reach is up to 48 feet with consistent boom force.

Quiet, roomy cab with joysticks built into the armrests and an in-cab switch for the Gradall, Deere, or SAE control pattern. Two electronic foot pedals reposition the carrier across two crawler speed ranges. Air conditioning, high temperature glass, and window guards are standard, with optional rollover protection.

Bosch Rexroth high-pressure hydraulics, electronically controlled with pressure-compensated, load-sensing valves. A combined electrical system runs chassis and excavator functions, and an internal tooth swing bearing keeps movement smooth and stable.

Heavy frame for lateral support and a heavy boom cradle. Crawlers carry thicker grouser pads for work at the side of the carrier. The telescoping boom delivers full power and speed through the entire working range, with electronic joysticks for precise boom and attachment positioning.
